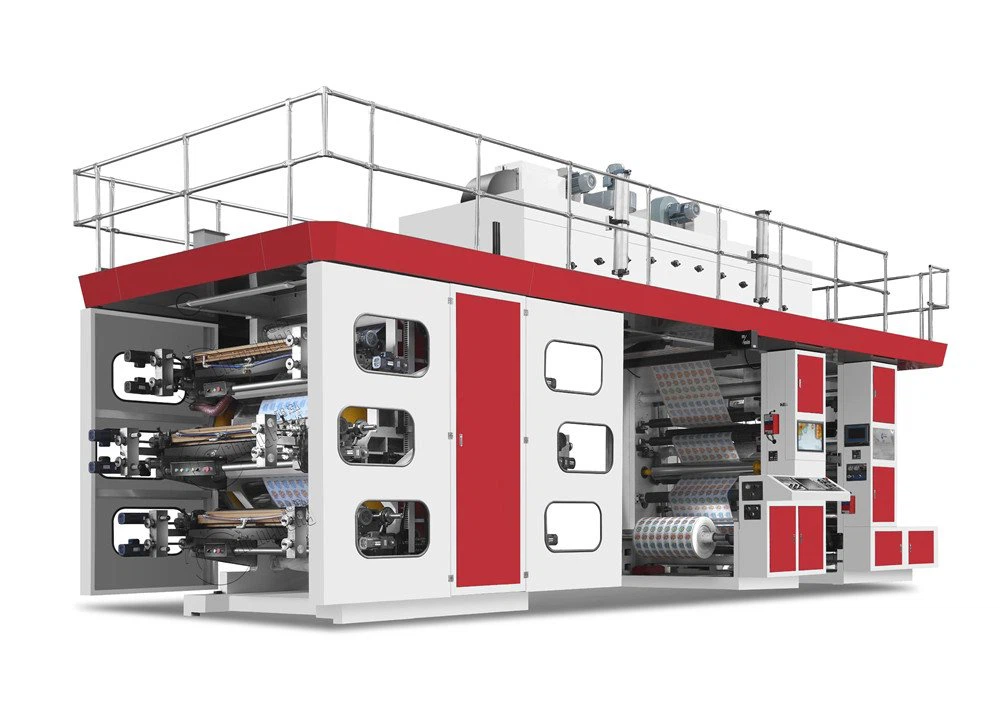

In Line Flexo Printing Machine In addition to multi-color printing, it is often connected with post-processing equipment such as coating, glazing, bronzing, cross-cutting, punching, and laminating to form a flexographic printing produc
Product Introduction
In Line Flexo Printing Machine In addition to multi-color printing, it is often connected with post-processing equipment such as coating, glazing, bronzing, cross-cutting, punching, and laminating to form a flexographic printing production line. Therefore, in addition to the three components of feeding and unwinding section, printing section, and receiving and rewinding section, this machine also has coating, glazing, bronzing, cross-cutting, punching, and waste rewinding. The printing width of the unit type flexo printing machine is generally less than 600mm.
tion line.
Parameter
Performance Characteristics
①Due to the high paper feeding speed of the Paper Bag Flexo Printing Machine, reel replacement is quite frequent, and the downtime required for reel change has a great impact on the efficiency of the printing machine. roll changing device).
②There are generally two ways to install the roll mechanism.
③During the printing process, because the diameter of the reel changes from large to small, and the tension is also constantly changing with the change of the diameter of the reel. In order to maintain a constant tension during paper feeding, a tension control system is installed.
④In order to ensure the registration of the material tape in the printing area, it is first necessary to ensure that the printing material is always running forward in a straight line throughout the printing and processing area, so the roll-type paper feeding device is equipped with a roll material guide correction device.
⑤In unit flexographic printing machines, a pneumatic loading roll device is generally installed to reduce the labor intensity of the operator. At the same time, in order to ensure that the material belt will not be slack when changing the material roll, and to avoid repeated paper threading, a splicing paper platform is installed.
