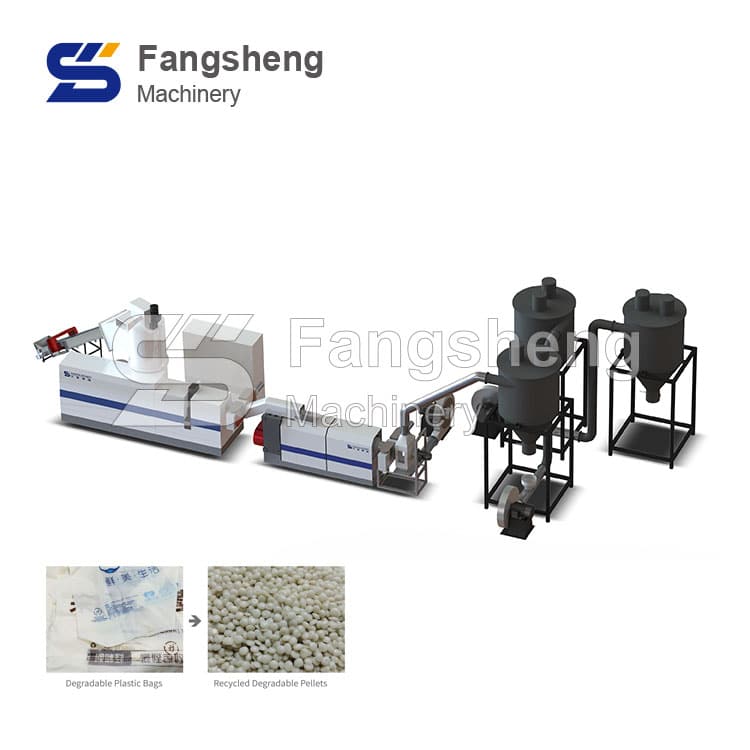

This PLA / PBAT degradable plastic granulation line is specially design to deal with the materials like PLA / PBAT degradable.
This PLA / PBAT degradable plastic granulation line is specially design to deal with the materials like PLA / PBAT degradable.
With compactor unit to agglomeration the material firstly, will helpful to reduce the moisture and good for feeding into extruder. 1 degassing vent will absorb the dirt and printing ink, the final flakes will be more clean and stable. PLA / PBAT degradable plastic granulation machine is with high automatically operation and labor savings quality. With advanced design concept and constantly advises from customers, Fangsheng Machinery can customized to meet all your specially demands.
1. Save manpower and the plastic granulation production line only need 1~2 workers to operate.
2. No need another crusher to crushing material into pieces, big material can be feed to machine directly. Save time and very convenient.
3. Low energy consumption, as well save the cost.
4. The granules will high quality and beautiful.
FS series single-stage granulator machine | ||||||
---|---|---|---|---|---|---|
Model | Extruder | Screw diameter(mm) | L/D ratio | Power(kw) | Productivity(PE)(kg/h) | Productivity(PP)(kg/h) |
FSJ70 | 70/33 | φ70 | 33:1 | 110 | 110-150 | 100-130 |
FSJ85 | 85/33 | φ85 | 33:1 | 150 | 180-250 | 150-200 |
FSJ100 | 100/33 | φ100 | 33:1 | 210 | 280-350 | 250-300 |
FSJ130 | 130/33 | φ130 | 33:1 | 300 | 480-550 | 400-480 |
FSJ160 | 160/33 | φ160 | 33:1 | 370 | 650-750 | 550-650 |
FSJ180 | 180/33 | φ180 | 33:1 | 460 | 800-1000 | 750-850 |
FS series double-stage granulator machine | ||||
---|---|---|---|---|
Model | FSJ100/120 | FSJ130/130 | FSJ160/160 | FSJ180/200 |
First extruder parameter | ||||
Screw diameter(mm) | φ100 | φ130 | φ160 | φ180 |
L/D ratio | 33 | 33 | 30 | 30 |
Extruder motor(kw) | 90 | 132 | 185 | 250 |
Heating power(kw) | 45 | 55 | 70 | 70 |
Screw speed(RPM) | 0-120 | 0-120 | 0-120 | 0-120 |
Second extruder parameter | ||||
Screw diameter(mm) | φ120 | φ130 | φ160 | φ200 |
L/D ratio | 10-15 | 10-15 | 10-15 | 10-15 |
Extruder motor(kw) | 30 | 45 | 55 | 75 |
Heating power(kw) | 30 | 35 | 45 | 60 |
Screw speed(RPM) | 0-120 | 0-120 | 0-120 | 0-120 |
Productivity(kg/h) | 250-350 | 400-550 | 500-700 | 800-1000 |
