inline flexographic printing can be customized according to customer's requirements and the unit can print up to 12 colors. Inline flexo printing machine is best for printing paper or non-woven materials.
Parameter
|
CH6-1200A Series (Printing Material: PAPER)-6 Color |
|
|
Model |
CH6-1200A |
|

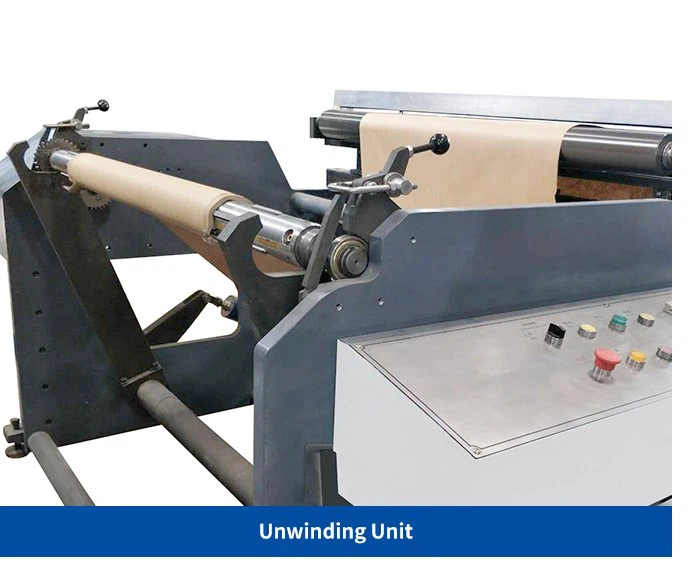

Maximum winding and unwinding diameter |
ф1524 |
|
Inner diameter of paper core |
3″ OR 6″ |
|
Maximum paper width |
1220MM |
|
Repeat length of printing plate |
380-1200mm |
|
Plate thickness |
1.7mm or to be specified |
|
Thickness of plate mounting tape |
0.38mm or to be specified |
|
Registration accuracy |
±0.12mm |
|
Printing paper weight |
40-140g/m2 |
|
Tension control range |
10-50kg |
|
Maximum printing speed |
100m/min |
|
Maximum machine speed |
150m/min |
Performance Characteristics
1. Ink transfer method is ceramic mesh roller, single-pole reverse ink scraping system.
2. The anilox roller and the plate roller are pneumatically clutched and pressed, and they will be separated automatically when the machine stops.
3. inline flexographic printing quickly change the printing plate cylinder and stainless steel ink cartridge without any tools.
4. Automatic printing plate cleaning function: after the screen roller is released from pressure every time the machine stops, the plate roller continues to rotate to transfer the ink on the printing plate to the paper, keeping the printing plate clean.
