The stack flexo printing machine prints by the method of transferring ink from an anilox roller, which is a type of letterpress printing process, referred to as flexo printing. The graphic part of the flexographic printing plate is raised, and the anilox roller evenly coats the ink layer of a certain thickness on the graphic part of the printing plate during printing, and then under the action of the pressure of the embossing roller, the ink layer of the graphic part is Transfer to the surface of the substrate to form a clear graphic. The inking mechanism of a flexographic printing press is usually a two-roller inking mechanism. Among stack flexo printing machines, 8 colour flexo printing machines are more popular.
Parameter
TECHNICAL SPECIFICATIONS |
||||
Model |
CH8-600H |
CH8-800H |
CH8-1000H |
CH8-1200H |
Max. Web Width |
650mm |
850mm |
1050mm |
1250mm |
Max. Printing Width |
600mm |
800mm |
1000mm |
1200mm |
Max. Machine Speed |
120m/min |
|||
Printing Speed |
100m/min |
|||
Max. Unwind/Rewind Dia. |
φ800mm |
|||
Drive Type |
Gear drive |
|||
Plate thickness |
Photopolymer plate 1.7mm or 1.14mm (or to be specified) |
|||
Ink |
Water base ink or solvent ink |
|||
Printing length (repeat) |
300mm-1000mm |
|||
Range Of Substrates |
LDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon, PAPER, NONWOVEN |
|||
Electrical supply |
Voltage 380V. 50 HZ.3PH or to be specified |
Advantage
1. When the stack flexo printing machine is printing, its paper path can be changed, its printing can print the front and back at the same time, and its printing color number is very convenient to change.
2. The printed parts are very good and convenient for our operation, like our adjustment, replacement and cleaning are relatively convenient.

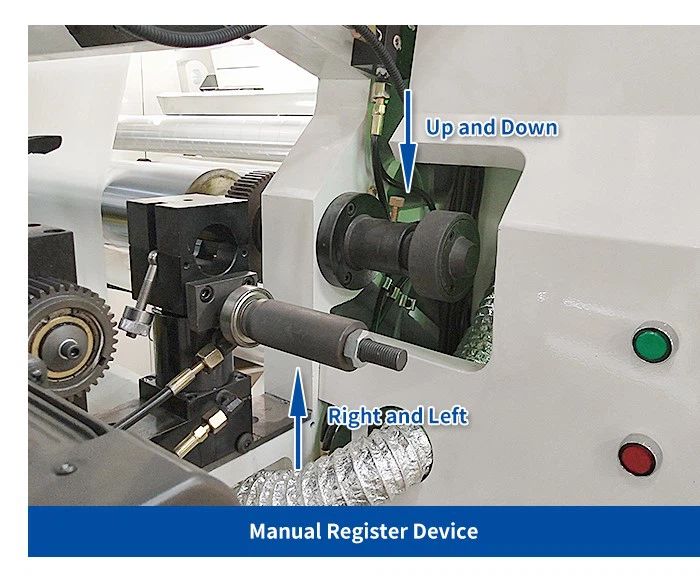

3. The printing unit can be separated and meshed independently, and it can also perform 360 registration, which will facilitate the printing of other printing units.
4. It has a wide range of applications and can print various publications.
